From the renowned ACOG lineup, the LED ACOG is the first model to feature user-selectable brightness controls. It offers six adjustable brightness settings with an “off” position between each level, allowing precise reticle illumination—even in transitional lighting conditions.
Powered by a single AA battery, the LED ACOG delivers over 12,000 hours of continuous runtime (at setting #4), ensuring long-lasting performance in the field. Its design has been optimized with a forward-positioned RMR mount, enhancing compatibility and overall functionality when paired with a reflex optic.
Like all ACOG models, it is constructed from rugged 7075-T6 forged aircraft-grade aluminum, providing exceptional durability and reliability for both the housing and internal electronics. The optic also supports multiple bullet drop compensating (BDC) and ranging reticle options to suit various applications.
Fully compatible with night vision devices, the Trijicon 4x32 LED ACOG also works seamlessly with most standard 4x32 ACOG accessories.
Key Features
- 4x32 fixed magnification optic
- LED illumination with 6 brightness settings
- “Off” position between each brightness level
- Over 12,000-hour runtime (AA battery)
- Forward-positioned RMR mount for added versatility
- Durable 7075-T6 forged aluminum housing
- Multiple BDC and ranging reticle options
- Night vision device compatible
- Compatible with standard 4x32 ACOG accessories
- Built for rugged, reliable performance
Includes
- Includes Thumbscrew Flattop Adapter (TA51)
- Includes AA battery
- LENSPEN (TA56) included
- Adjuster cap lanyard assembly (TA71E)
- Battery cap lanyard assembly
- Trijicon logo sticker (PR15)
- ACOG manual included
- Warranty card included
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 5.98 x 2 x 2.3 in (151.89 x 50.8 x 58.42 mm) |
| Weight | 17.5 oz (496.12 g) |
| Magnification | 4x |
| Objective Size | 32 mm |

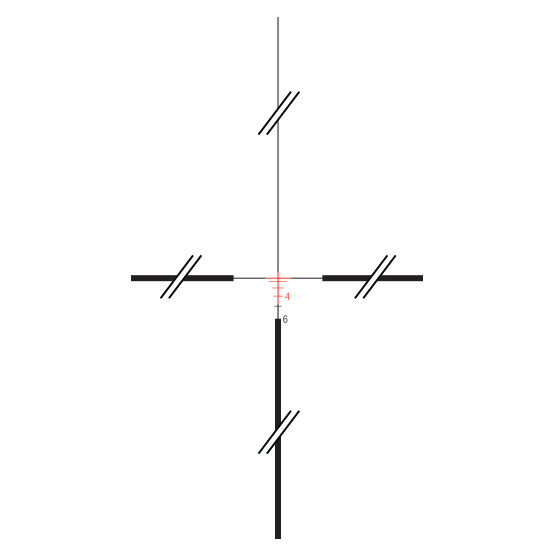

| Reticle Pattern | Crosshair |
| Day Reticle Color | Red |
| Night Reticle Color | Red |
| Bullet Drop Compensation | Yes (.223 / 5.56) |
| Bindon Aiming Concept™ | Yes |
| Illumination Source | LED |
| Power Source | AA Lithium or Alkaline Battery |
| Battery Life | 12,000+ hours (Setting #4, alkaline, 21°C / 70°F) |
| Adjustment | 2 clicks per inch @ 100 yards |
| Eye Relief | 1.5 in (38.1 mm) |
| Exit Pupil | 0.32 in (8.13 mm) |
| Field of View (Degrees) | 7° |
| Field of View (Linear) | 36.8 ft @ 100 yds (12.27 m @ 100 m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing Material | Forged Aluminum |
| Finish | Matte Black |
| Submersion Depth | -66 ft (-20 m) |
