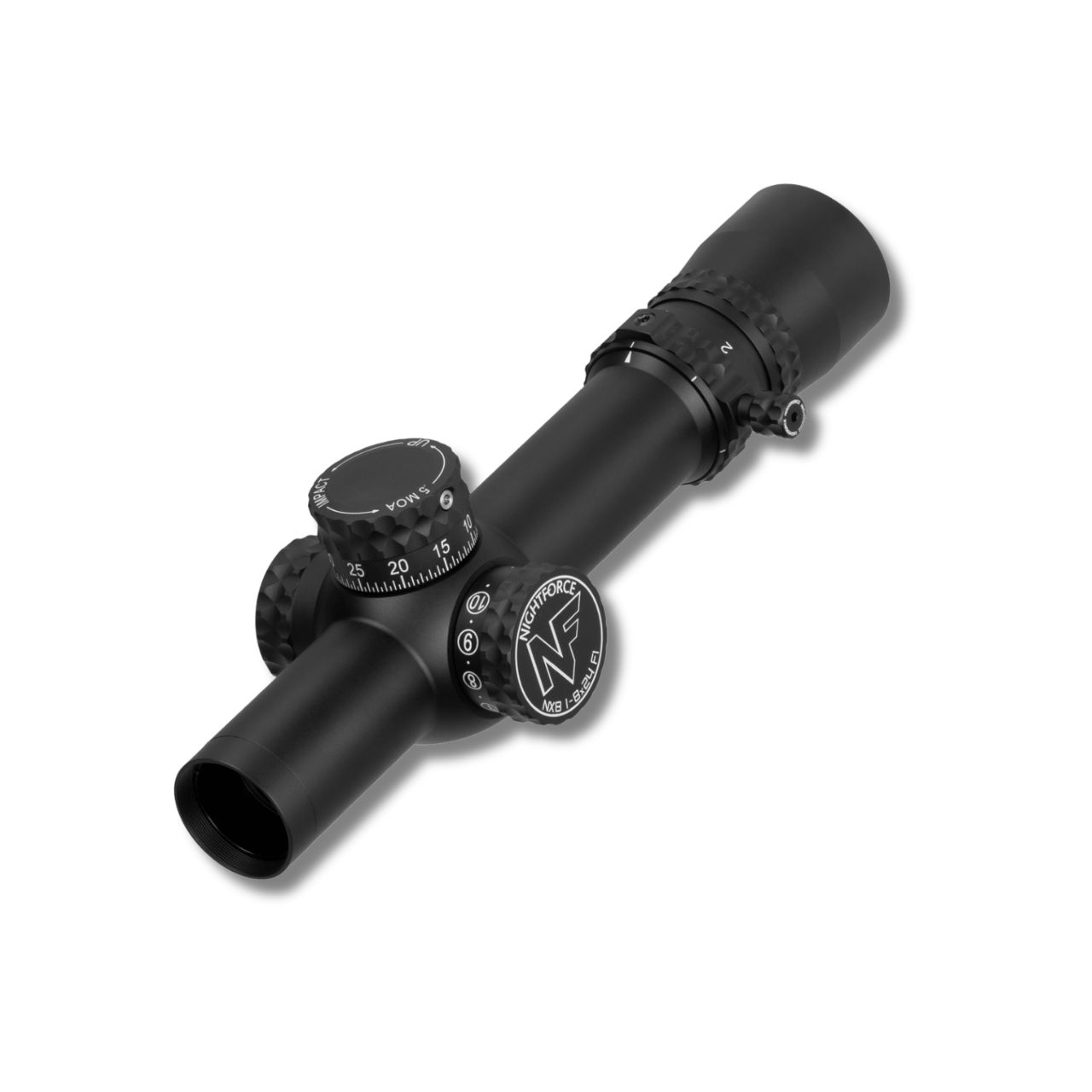

Nightforce NX8 1-8X24mm F1 is an optic designed to be versatile for carbines and light hunting rifles. Its true 1X magnification provides the opportunity to acquire targets quickly in the same way a red dot would. At 8X magnification, this optic provides clear images from a distance.
The reticle on the Nightforce NX8 is illuminated during daytime to ensure accuracy at any time, and its first focal plane means that the holdover is precise at any magnification. The Power Throw Lever feature facilitates switching between magnifications quickly.
Key Features
- 1–8x magnification for close to long-range versatility
- True 1x for fast, red dot–like target acquisition
- First focal plane (FFP) reticle for accurate holdovers
- Daylight-visible illuminated reticle
- Compact and lightweight design
- Integrated Power Throw Lever for quick magnification changes
- Crisp, high-resolution optics for extended range shooting
- Built for carbines and lightweight hunting rifles
| Magnification Range | 1–8x |
| Focal Plane | First |
| Overall Length | 8.7 in / 222 mm |
| Weight | 17.3 oz (capped) / 17.6 oz (ZeroStop™) |
| Body Tube Diameter | 30 mm |
| Mounting Length | 5.7 in / 144 mm |
| Elevation Feature | Capped, Finger Adjustable or ZeroStop™ |
| Click Value | .500 MOA or .2 MRAD |
| Internal Adjustment Range | Elevation: 100 MOA / 29 MRADWindage: 100 MOA / 29 MRAD |
| Parallax Adjustment | Fixed @ 137 yd / 125 m |
| Field of View (@100 yd/m) | 1x: 106.0 ft / 35.3 m8x: 13.2 ft / 4.4 m |
| Eye Relief | 3.7 in / 95 mm |
| Exit Pupil | 1x: 7.9 mm8x: 3.0 mm |
| Illumination | Daylight visible, externally adjustable |
| Power Throw Lever | Standard |
| Reticle | FC-MOA, FC-MIL |
