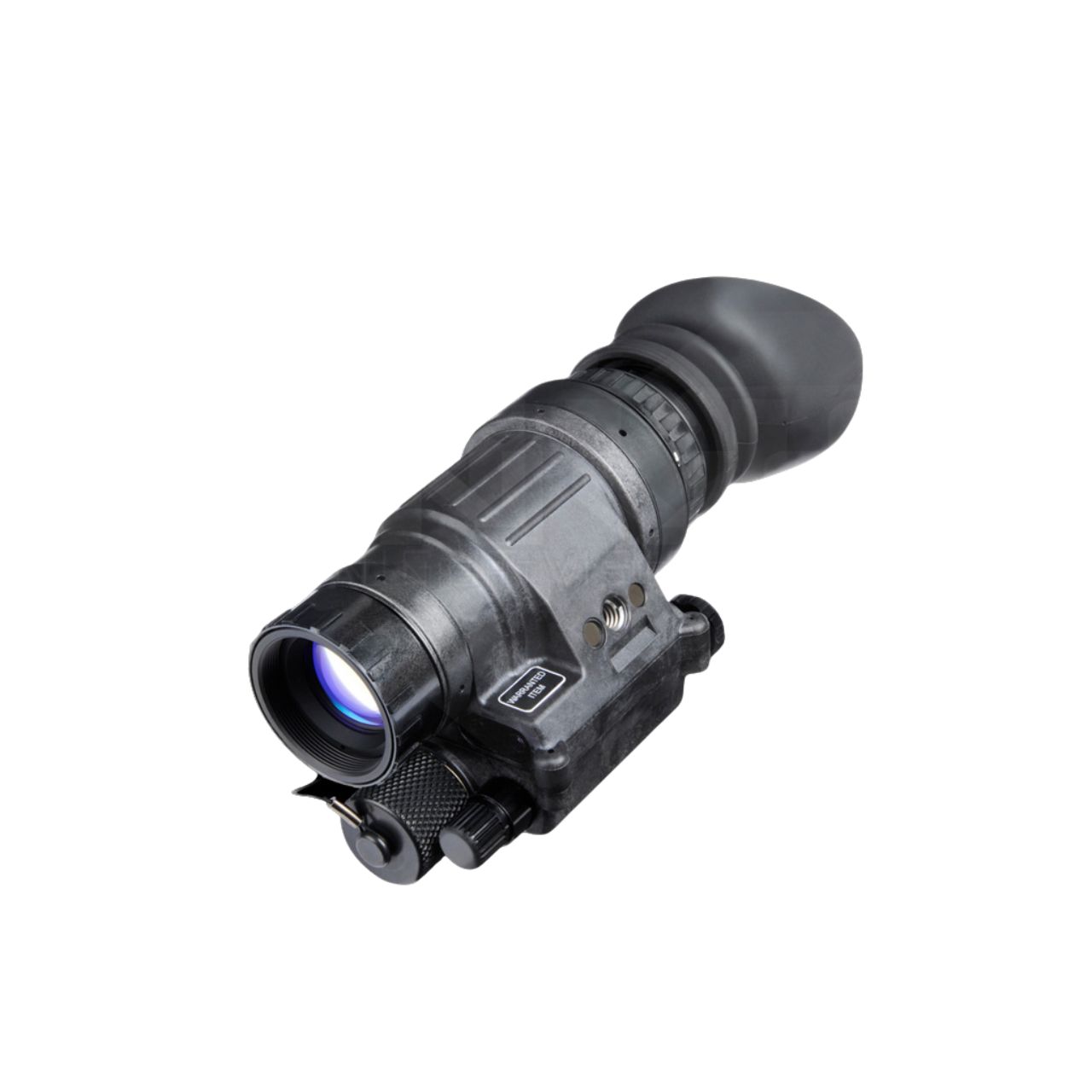

These L3Harris Mnvd M914A (Pvs-14) Monocular Night Vision Device- Gen 3 (White Phosphor) 2376 are factory built at L3Harris. These units are built with L3 Unfilmed 2376min FOM white phosphor image intensifier tubes.
The L3 PVS-14 is one of the most economical and versatile night vision devices available. When helmet mounted, the user has the option of choosing which eye they prefer to use with device. This leaves the user with one unaided eye. An unaided eye is beneficial in environments where the user must read ambient lighting conditions. As a result, the user has an increased ability to gauge true lighting conditions. Because of this the PVS-14 is an excellent choice for urban duty use and those seeking the versatility that a monocular brings.
Binocular night vision is amazing and has many benefits. However, PVS-14s have many uses and are a great cost effective way to see at night. PVS-14s are a very capable device and we think that they are a great way to get into night vision.
Key Features:
We are proud to be offering L3 Harris Mnvd M914A (Pvs-14) Monocular Night Vision Device- Gen 3 (White Phosphor) 2376 with ultra-high performing Unfilmed White Phosphor image intensifier tubes. With a 2376 minimum Figure of Merit (FOM – Signal to Noise Ratio multiplied by lp/mm Resolution), making it the highest guaranteed performance system currently available on the market without hand-selecting tube specs, and each system will come provided with the factory Tube Data Record.
Specifications:
Tube Specs:
These PVS-14 units are factory built at Insight Warrior Systems and come with 2376 min FOM L3Harris Unfilmed white phosphor milspec image intensifier tubes. These tubes are L3’s most advanced image intensifier tubes and are selected by L3Harris for their finished goods. These are the same tubes that come standard in PVS-31a’s.
2376 minimum FOM Unfilmed White Phosphor:
- FOM: 2376 minimum
- Milspec Spot Spec: can have max 4 spots per tube larger than .003″, no spots in zone 1 larger than .003″. Spots </= .003″ are acceptable.
| Dimensions | 4.5″(L) x 2.0″(W) x 2.25″(H) |
|---|---|
| Weight | 12.4oz. |
| Finish | Corrosion Resistant- Matte Black, FDE, or Crye MulticamTM |
| Power | One (1) Standard AA Battery |
| Battery Life | Approx. 50 Hours at Room Temp. |
| Waterproof | 60′ for 2 Hours |
| Warranty | TNVC 5 Year Warranty |
| OPTICAL | ---------------------------------------------------- |
| Generation | U.S. Gen3 L3Harris MIL-SPEC White Phosphor |
| Resolution | 2376+ |
| Halo | 1.0 (Maximum) |
| Film | Unfilmed |
| Gate | Auto |
| Gain | Adjustable/ Variable |
| Magnification | 1X +0.03 |
| FOV (Field of View) | 40º + 2º |
| Objective Lens | F/1.2 |
| Ocular Lens | EFL 26mm |
| Diopter | +4 to -6 |
| Focus | 10″ to Infinity |
